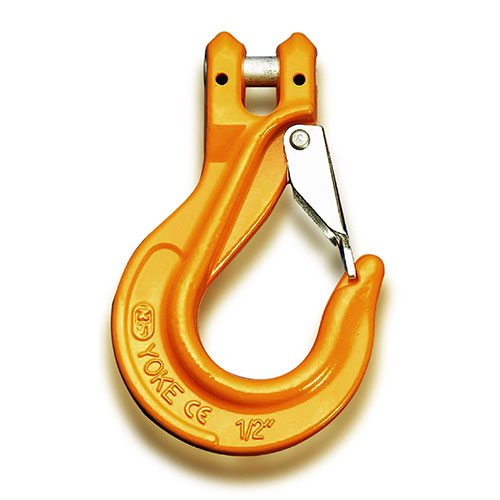

Clevis Sling Hook c/w Safety Catch (G80)

G80 clevis sling hooks with latch are an ideal lower end termination for chain sling assemblies.


  • Fitted with sturdy spring loaded safety latch for added security and lifting.
  • Yellow painted finish.
  • Complies with Australian Standard AS 3776


Download coming soon
Product manual coming soon

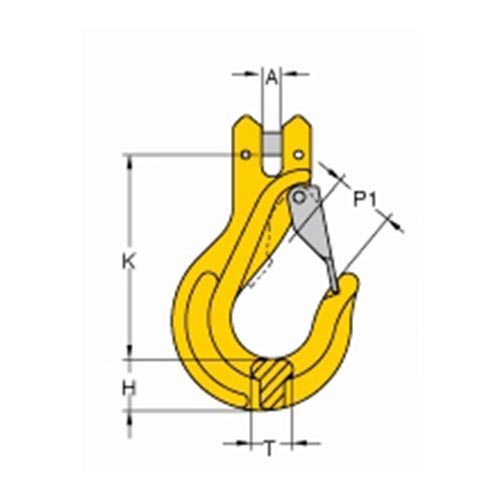

Part No. Chain Size
(mm)
WLL
(tonne)
A
(mm)
H
(mm)
K
(mm)
P1
(mm)
T
(mm)
Weight
(kg)
127206 6 1.1 6 18 79 23 15 0.3
127208 7-8 2 9 22 98 27 18 0.6
127210 10 3.2 11 29 121 34 23 1.2
127213 13 5.3 14 37 147 44 30 2.3
127216 16 8 18 42 166 48 39 3.7
127220 18-20 12.5 21 50 200 56 47 6.5
